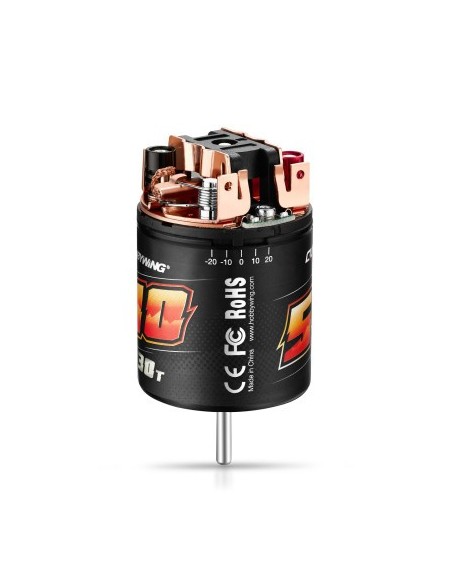

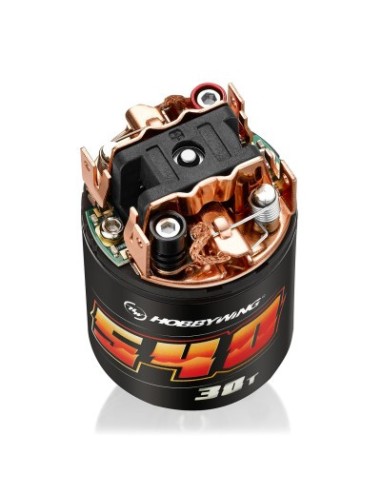

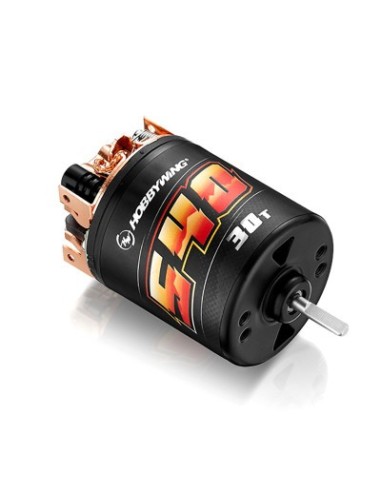

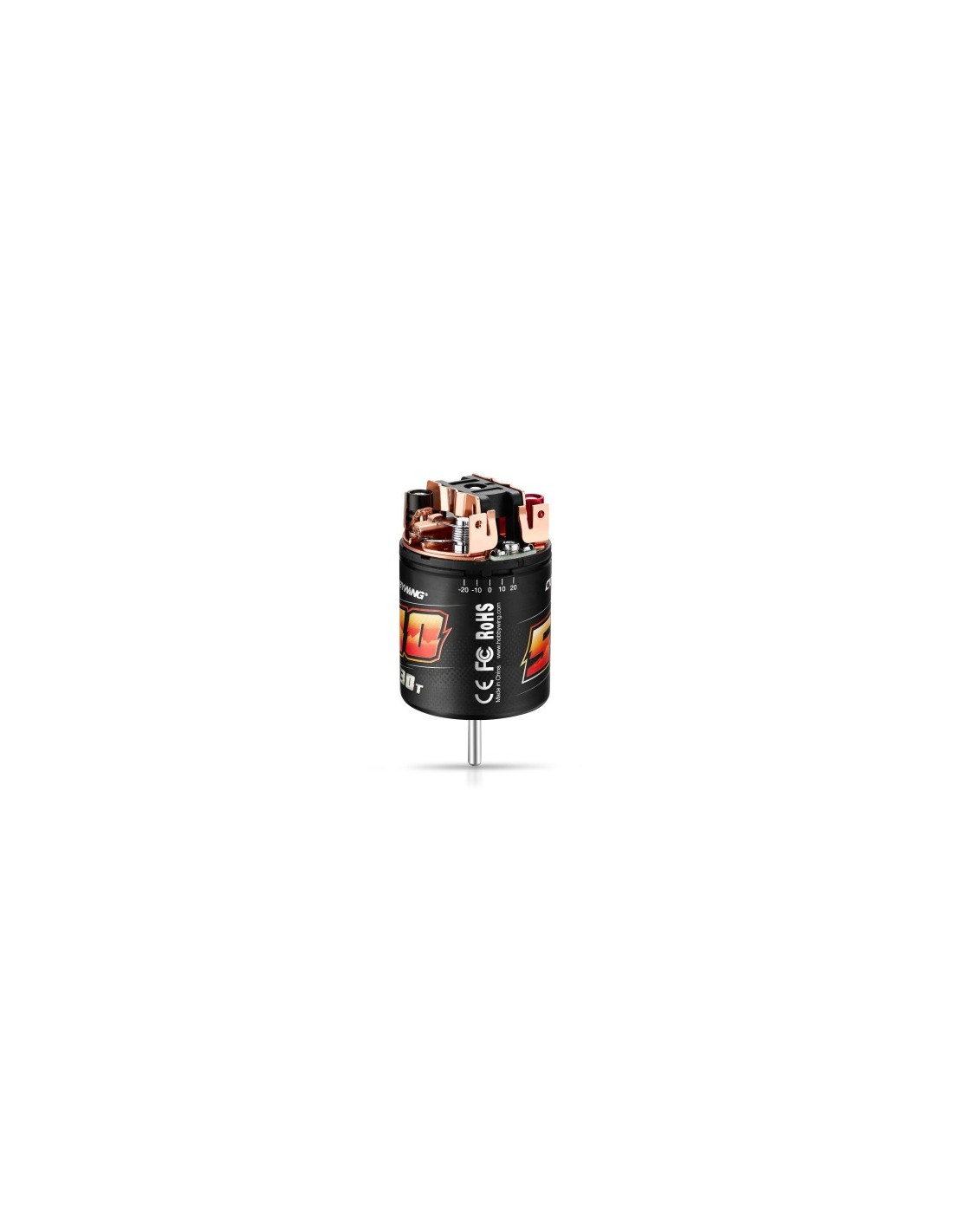

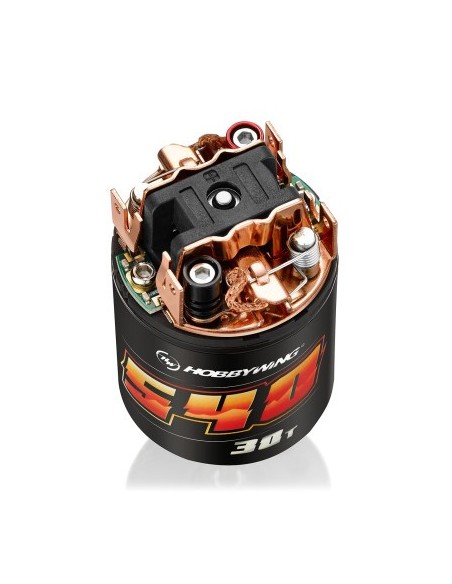

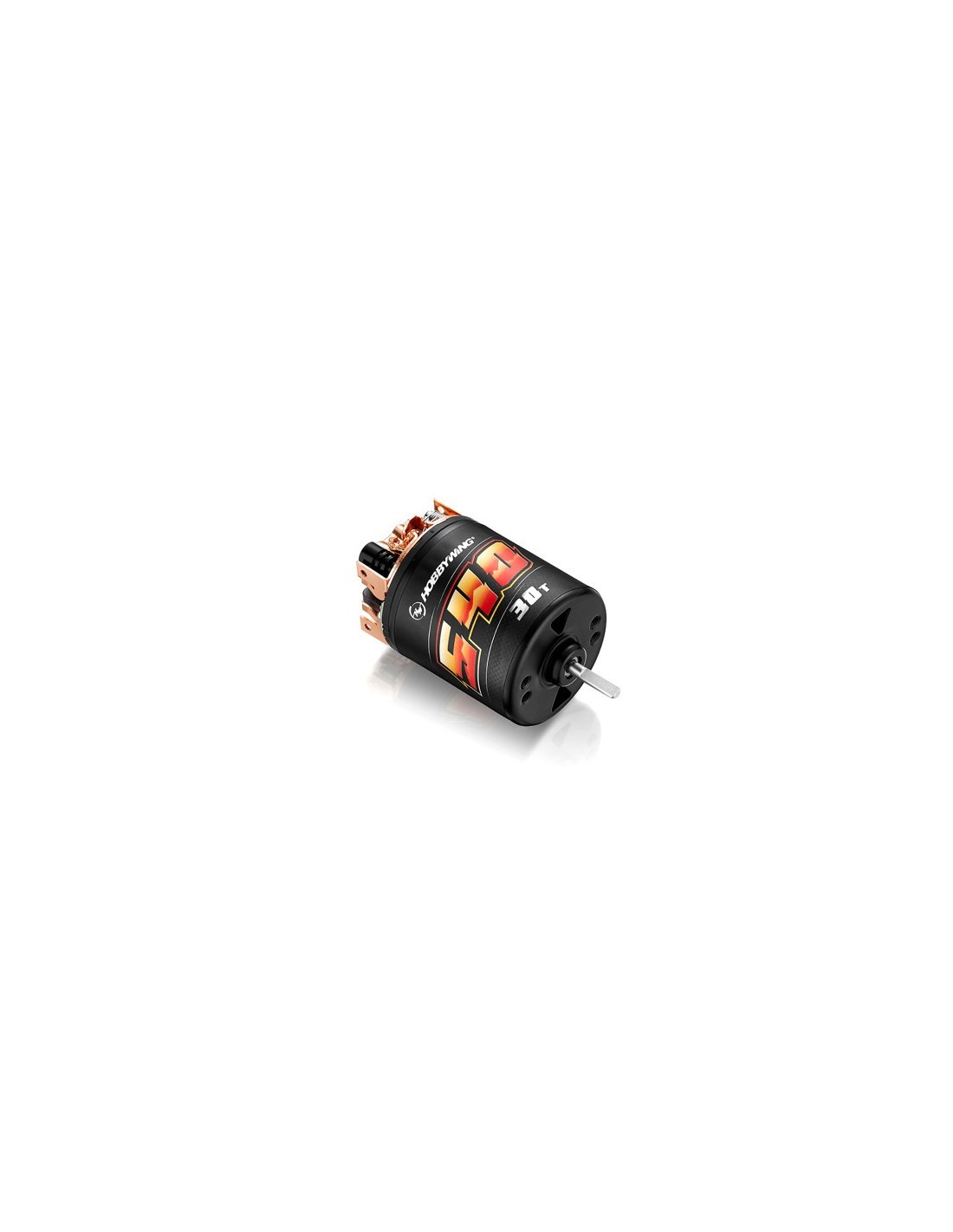

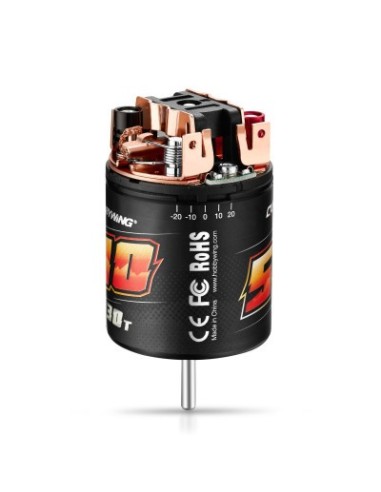

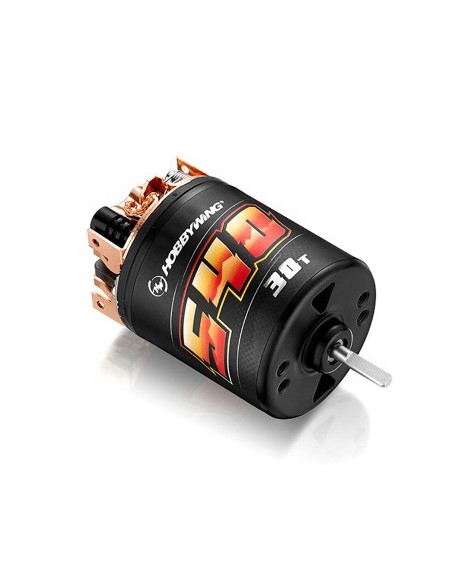

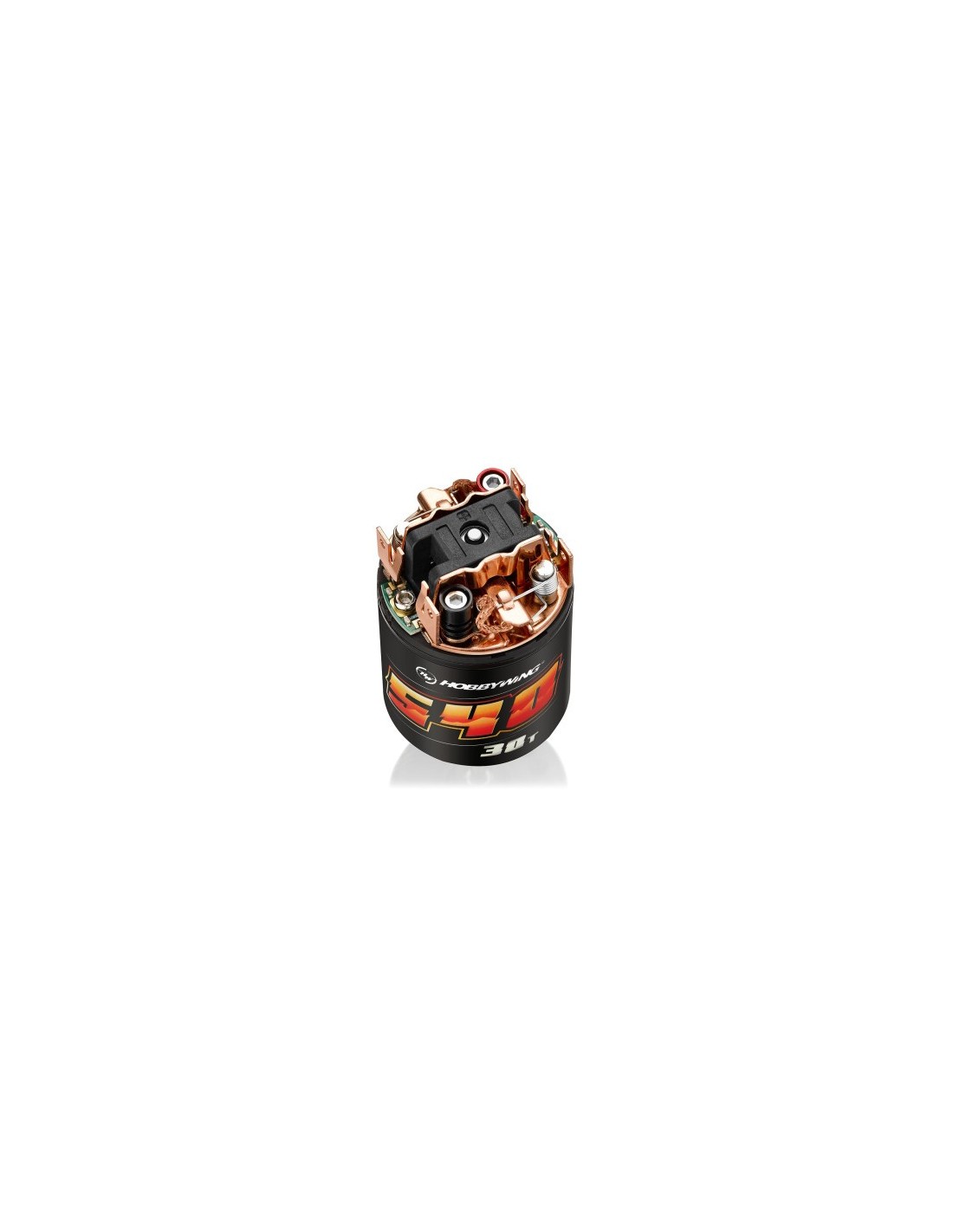

Quicrun Brushed 540 30 Turn Motor

Thanks to its outstanding response and control, the 30T Quicrun Brushed 540 motor is ready for the next 1/10 scale adventure. The adjustable motor timing can be selected in the range between -20° and +20°. And the more precisely this value is set to your own preferences, the better the driving experience.

Due to the high-quality materials used in the manufacturing process, the motors of this Quicrun Brushed series certainly meet the high demands of today's driving conditions. These include the heat-resistant magnet and the built-in copper wires, which can withstand temperatures of up to 200°C. The brushes were specially developed so that, due to their extremely long service life, they give the impression of being brushless motors.

Another highlight is the permanently mounted PCB anti-interference boards, each with two soldered capacitors to ensure a less stressful driving experience.

Features:

Modern motor for 1/10 On-Road and Off-Road action

Great efficiency

Adjustable timing

Zero-togging torque design

Incl. PCB board to avoid interference

Easily dismantled for maintenance work

Technical Specifications:

Type: Brushed

Turns: 30T

RPM @ 7.4V: 14 000

Input Voltage: <=12.6V

Slots: 3

Length: 53.2mm

Diameter: 36mm

Shaft Diameter: 3.175mm

Weight: 168g

Application: 1/10 On-Road, Buggy,

Crawler & 2WD Truck

Delivery:

1x Motor

1x Manual (English)
