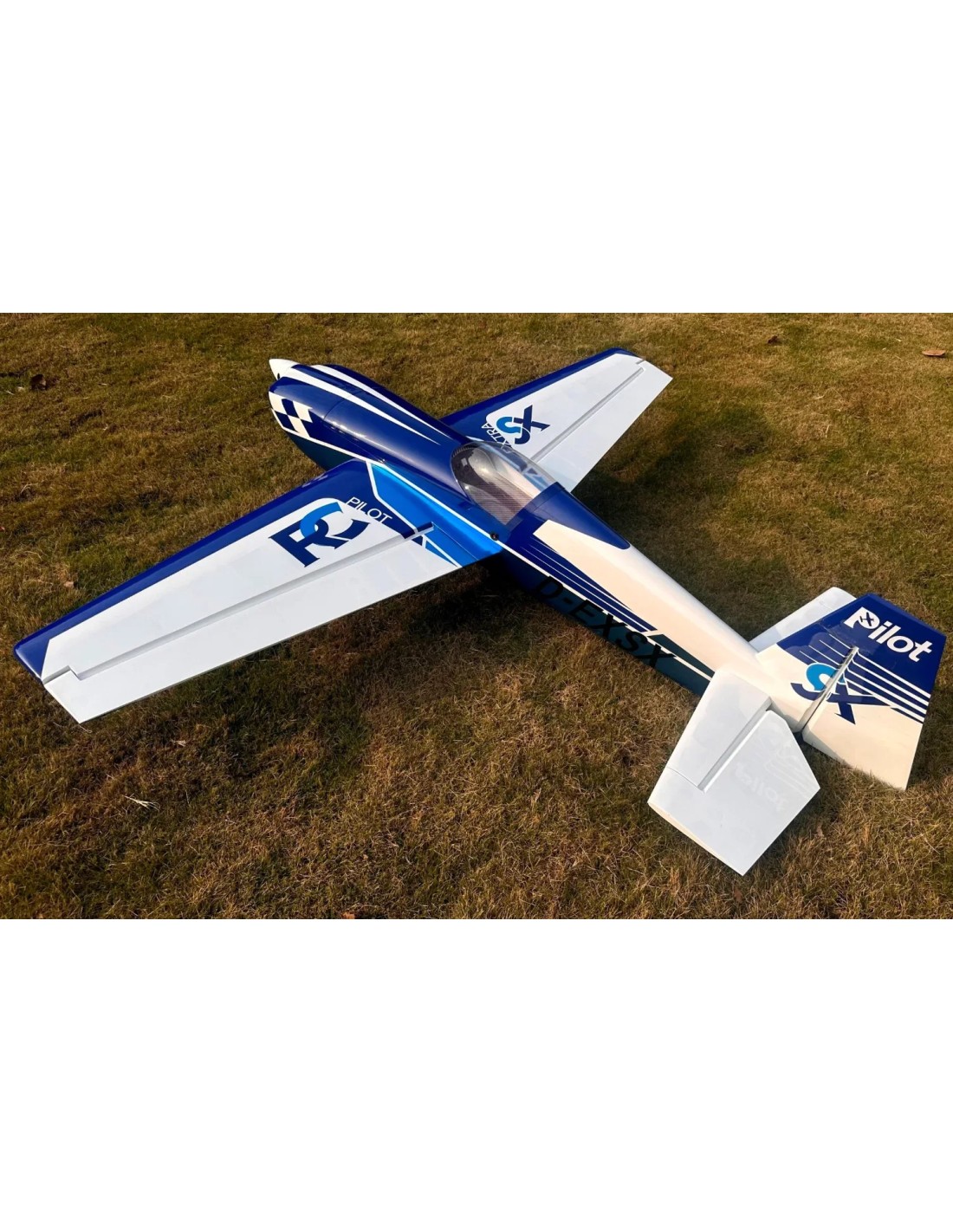

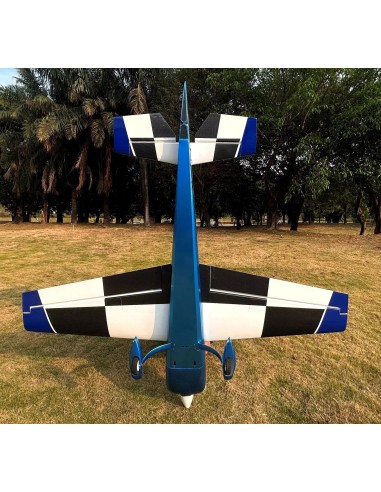

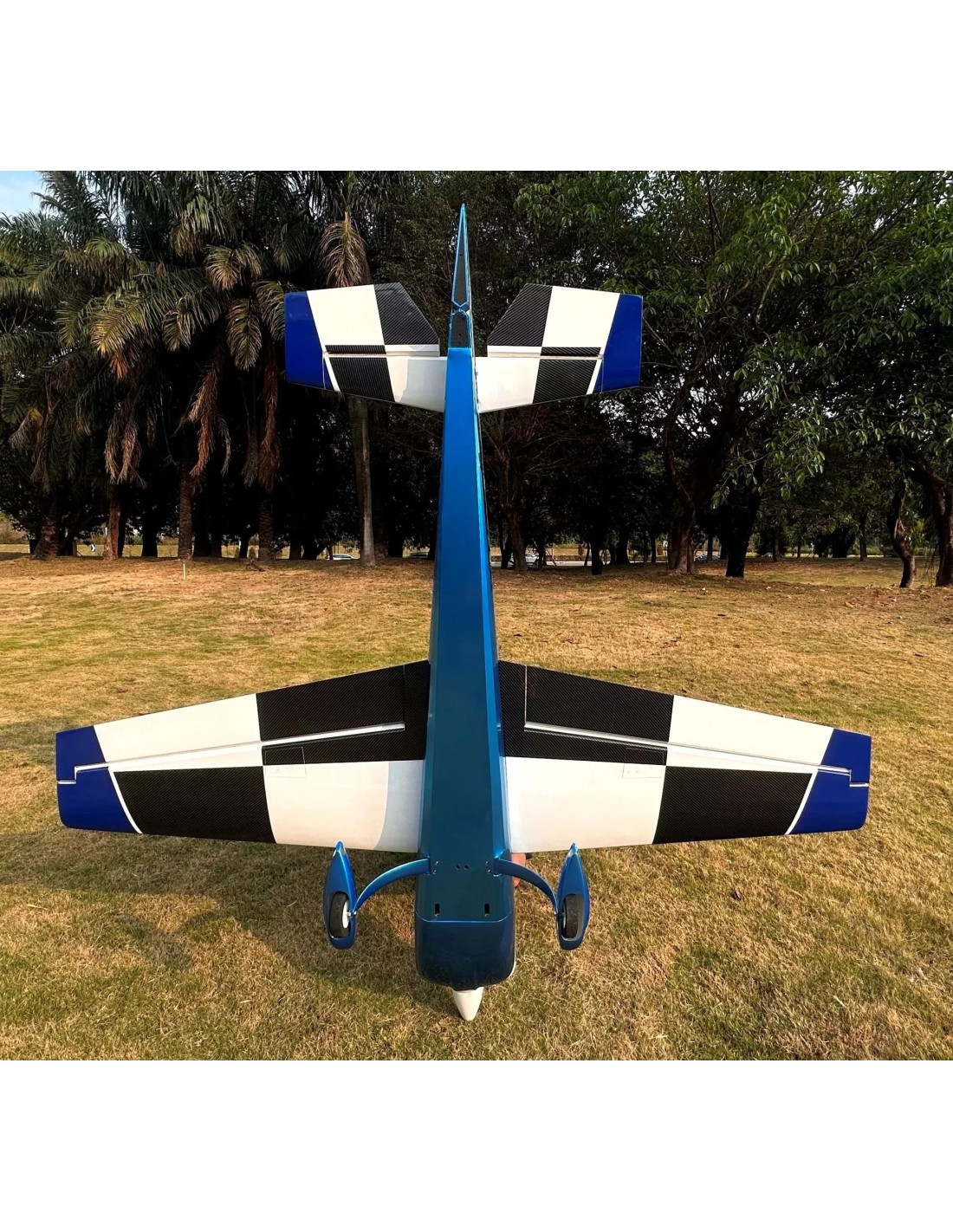

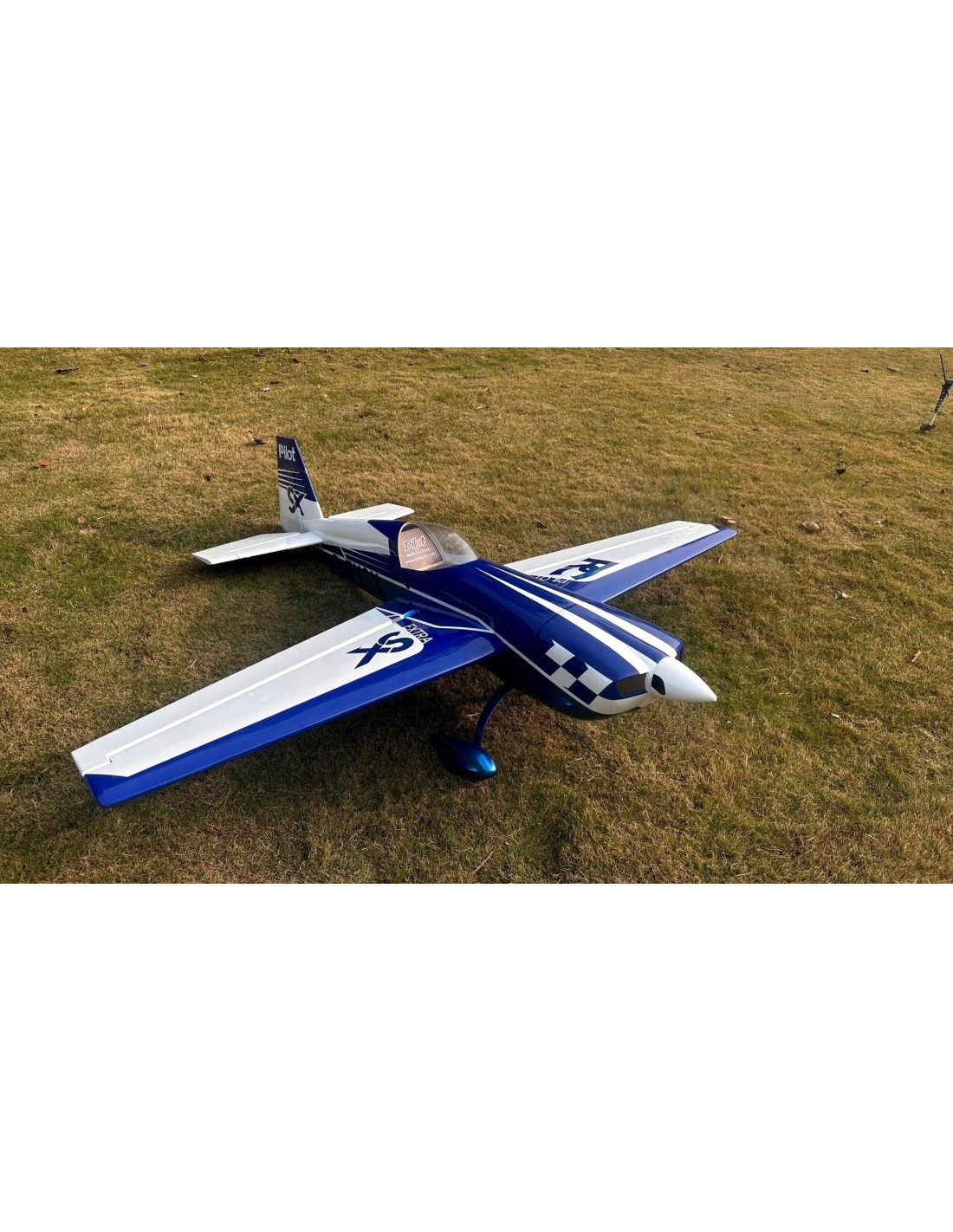

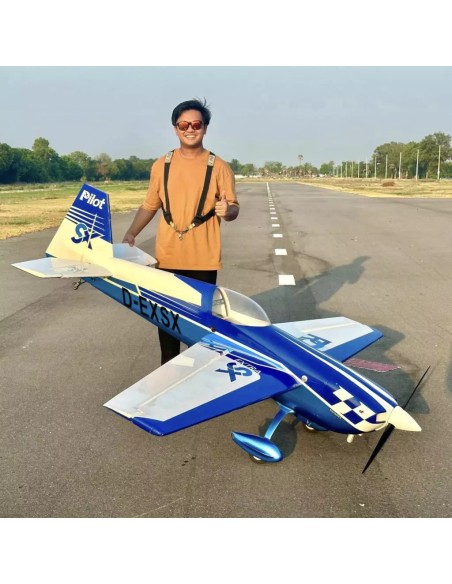

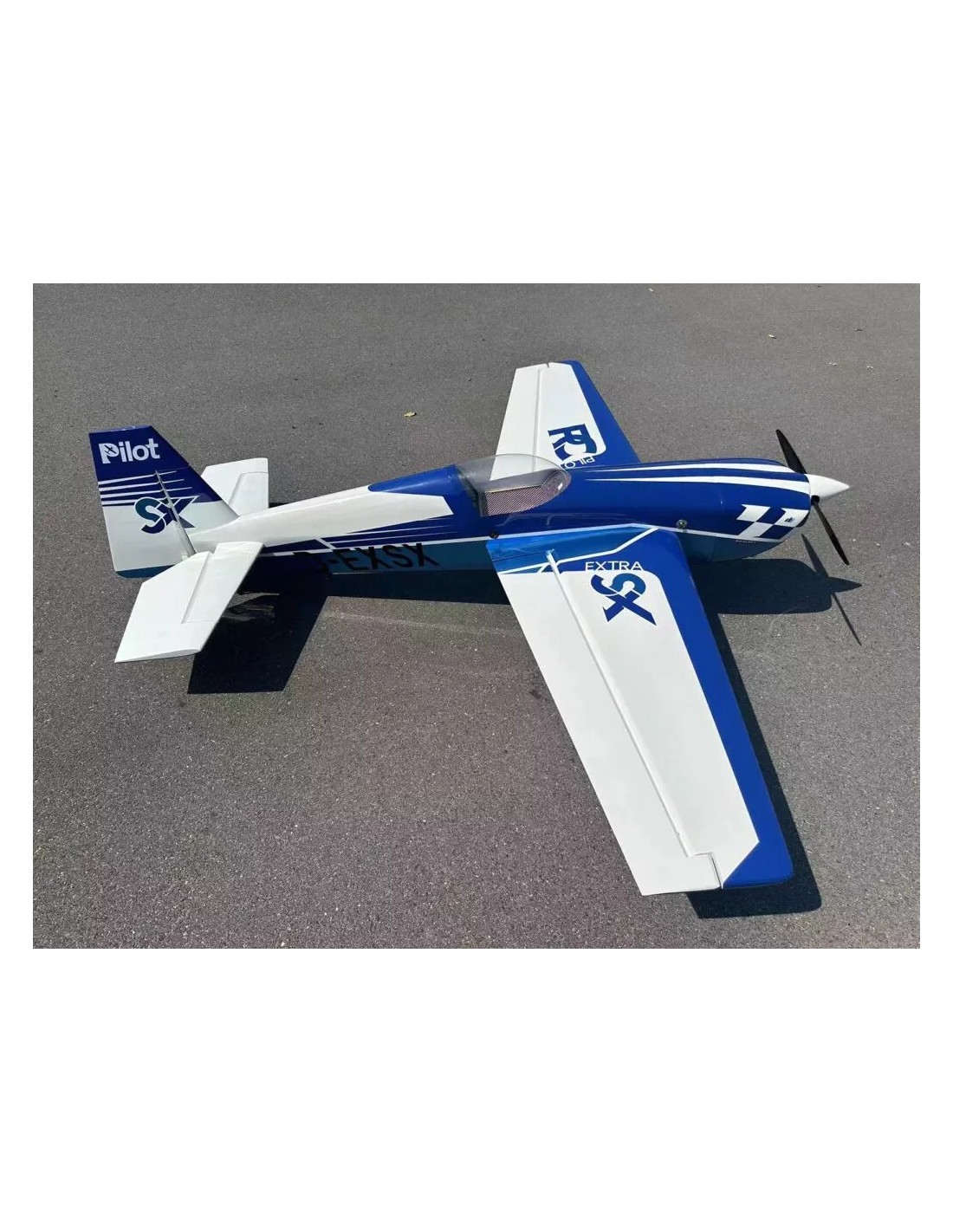

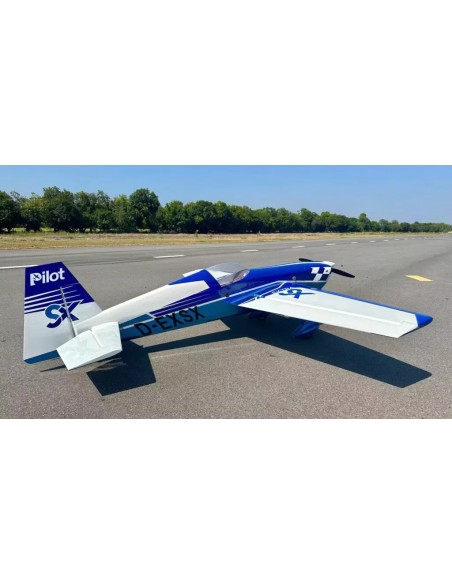

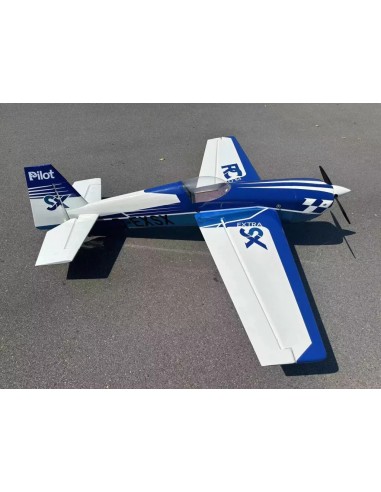

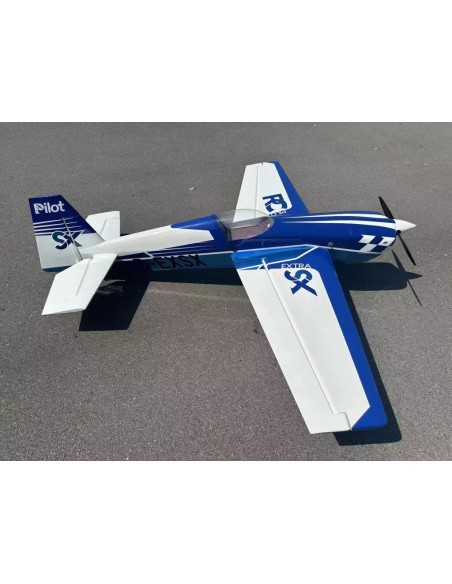

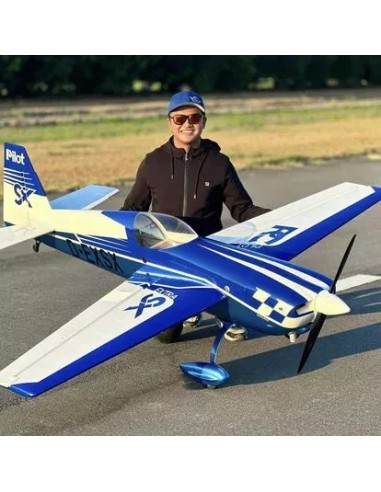

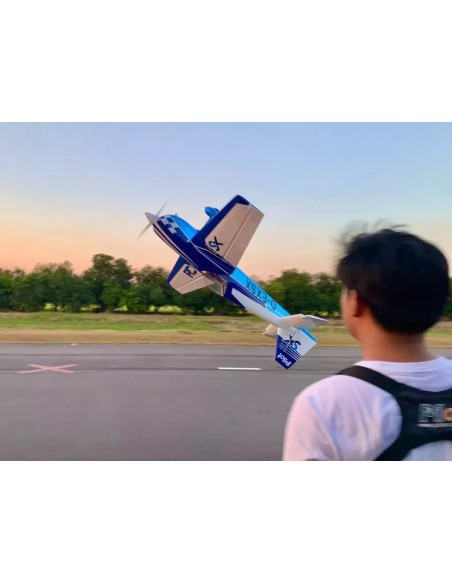

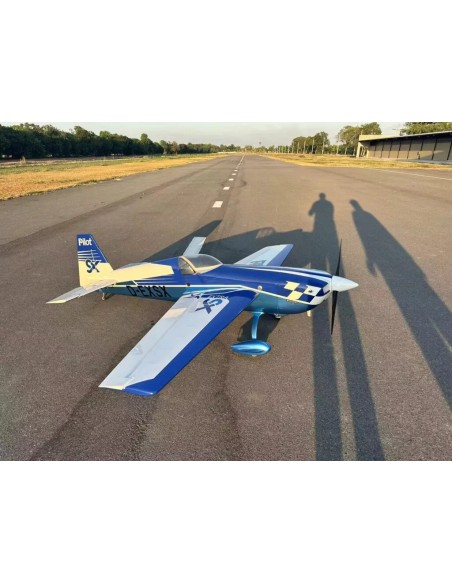

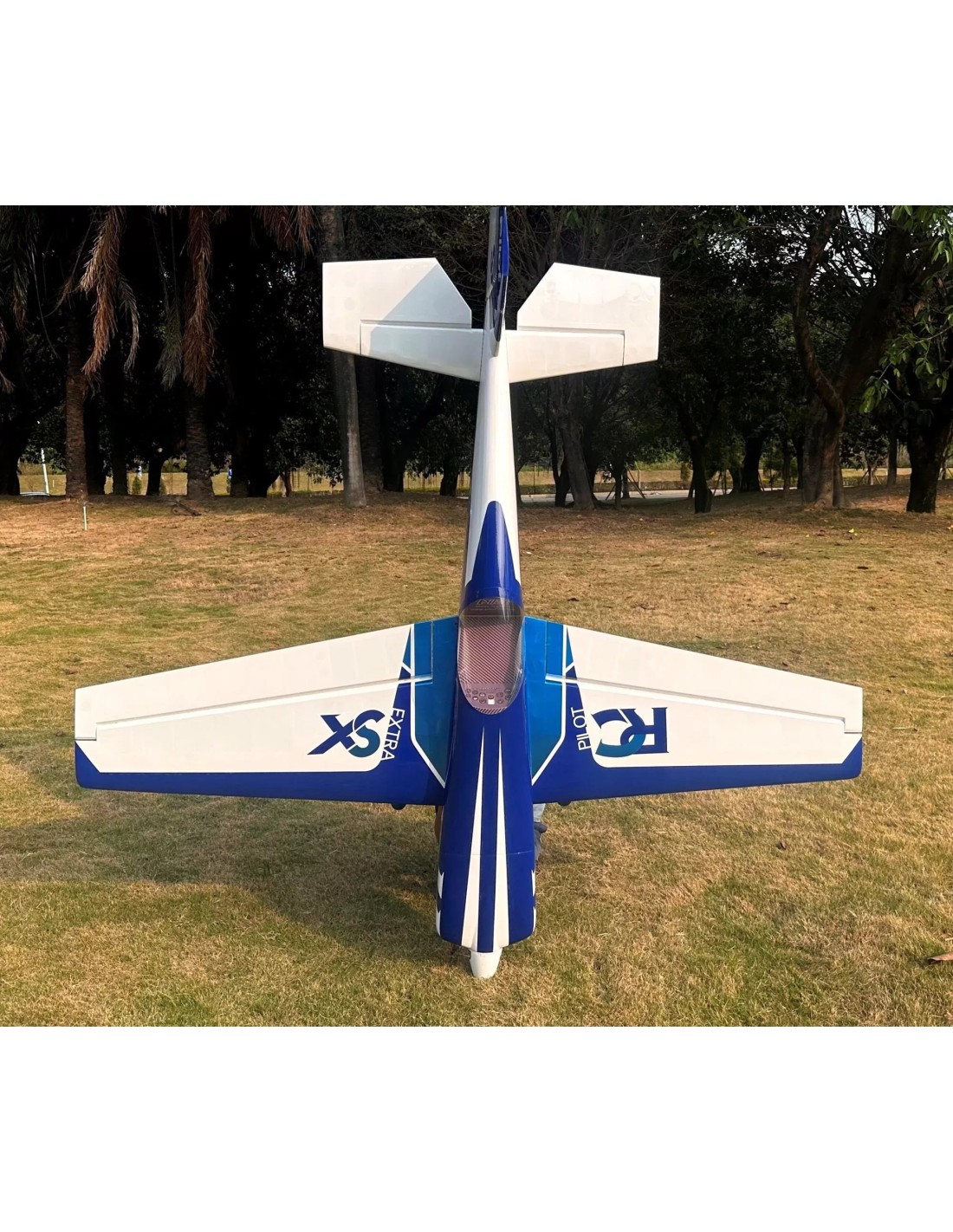

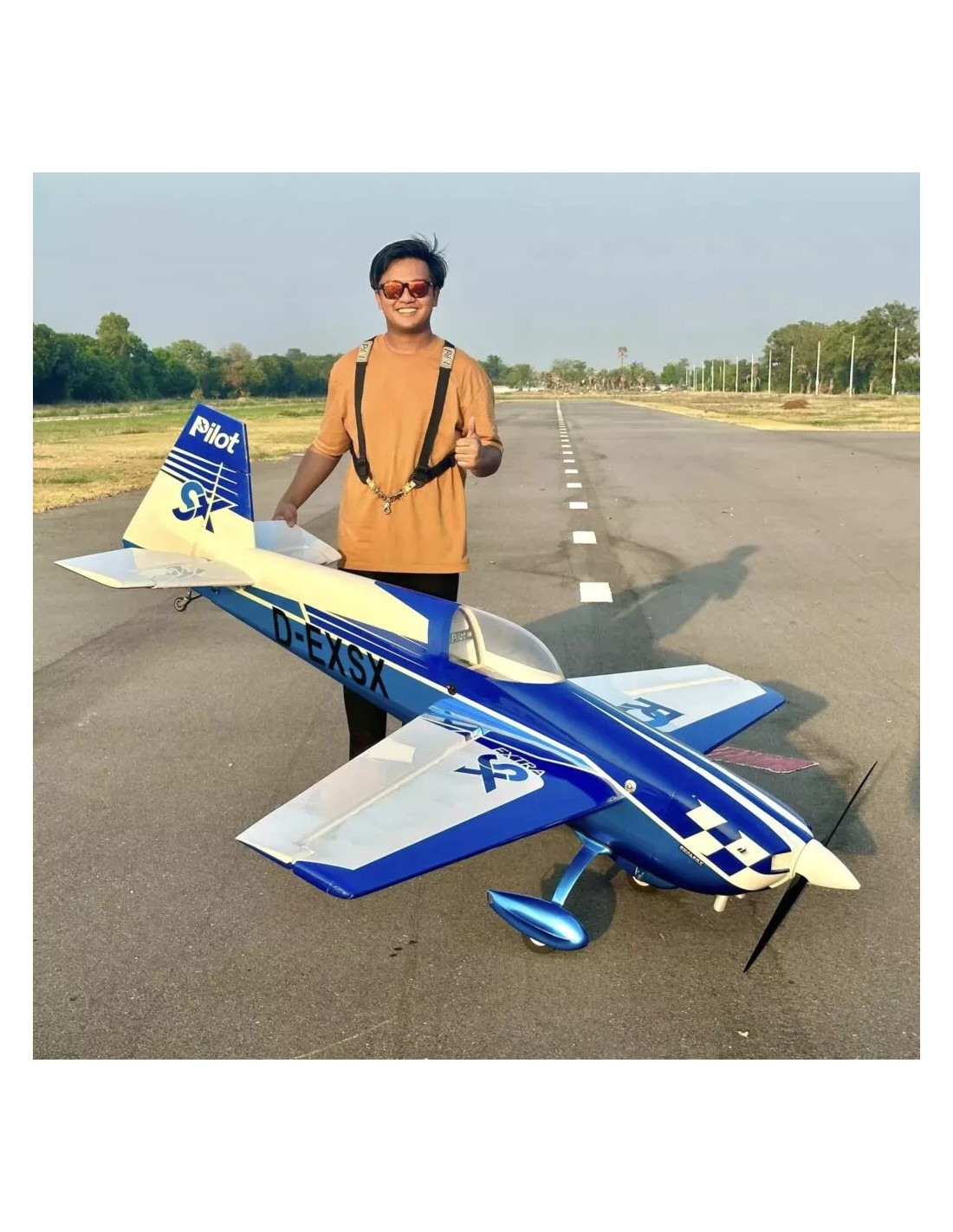

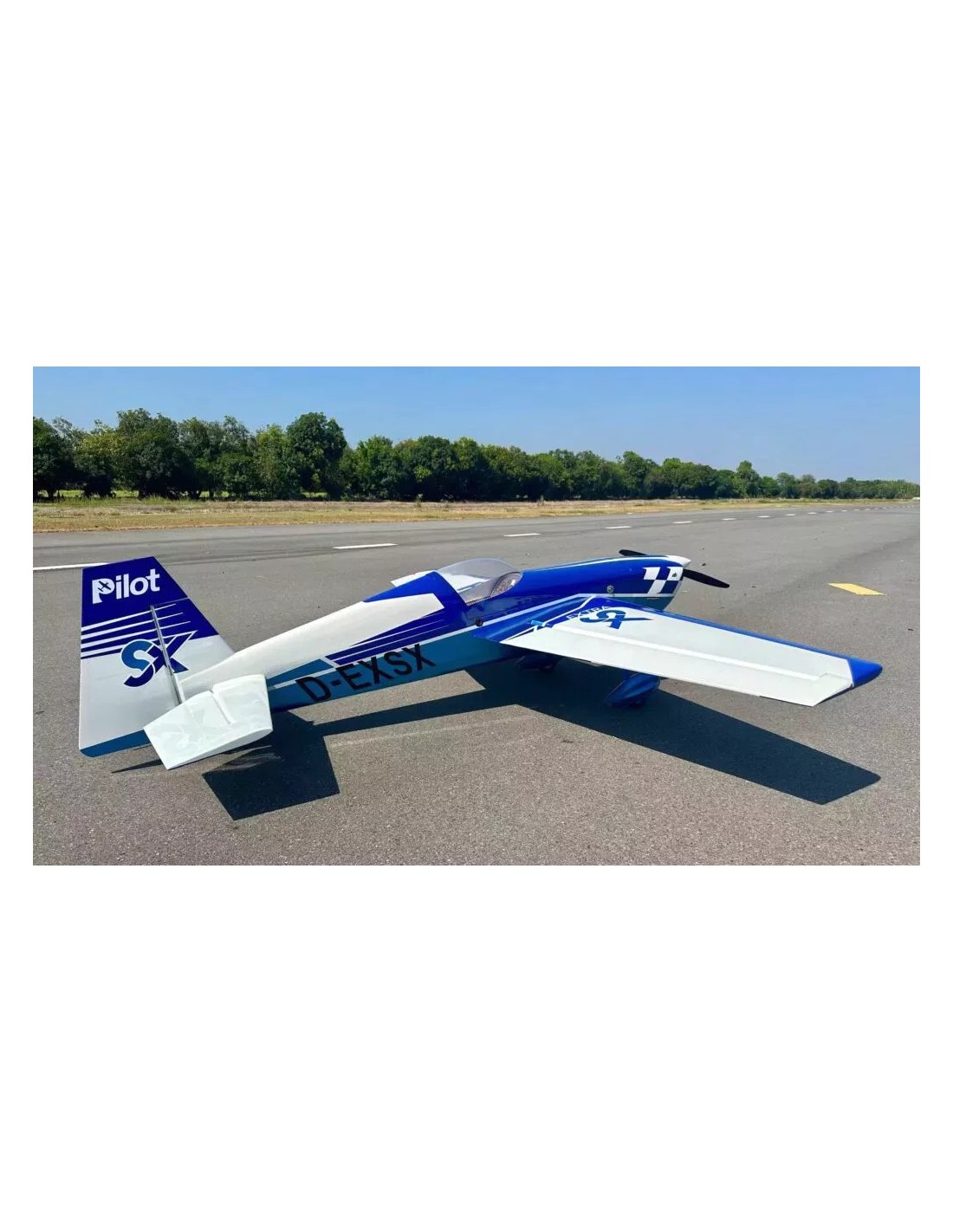

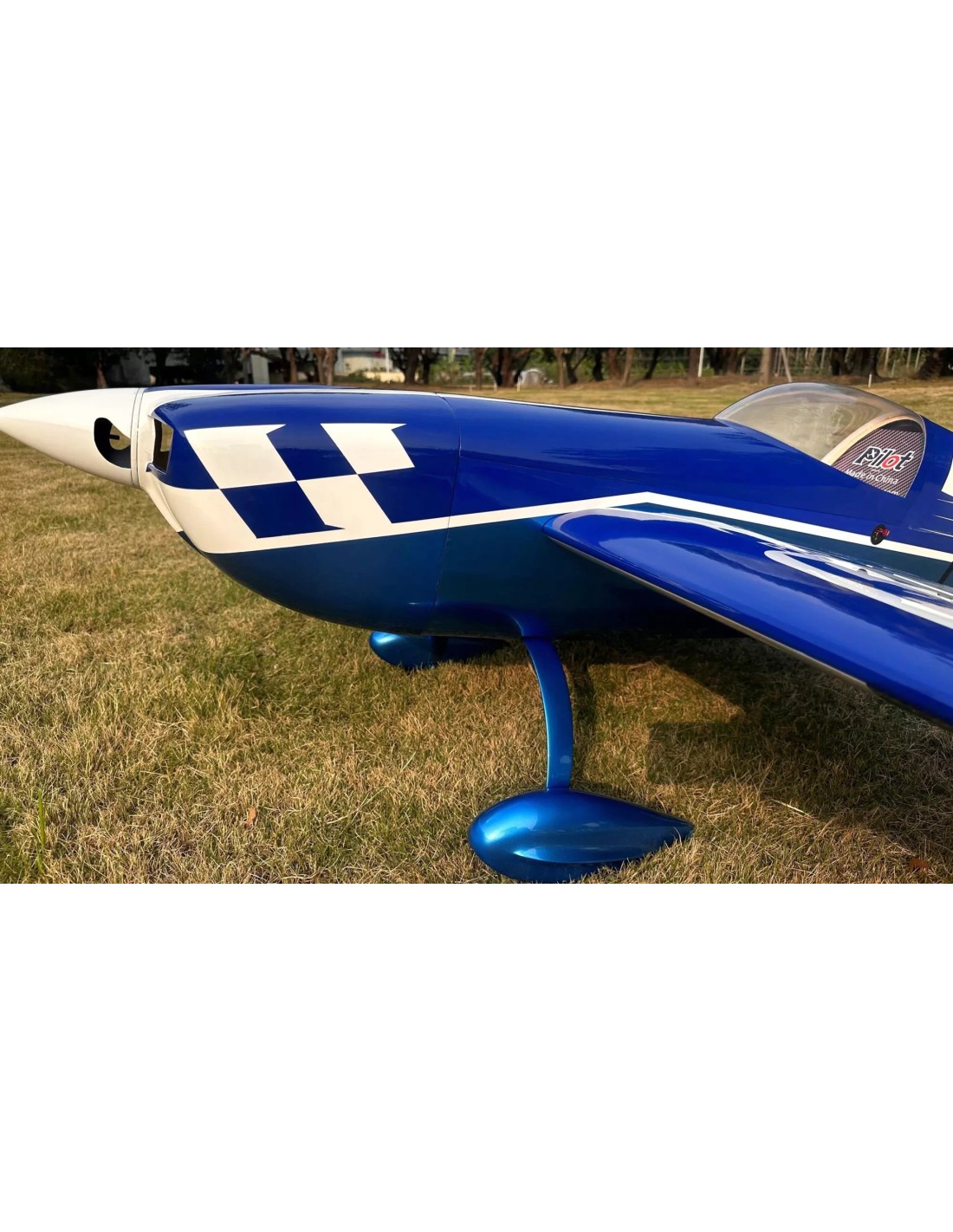

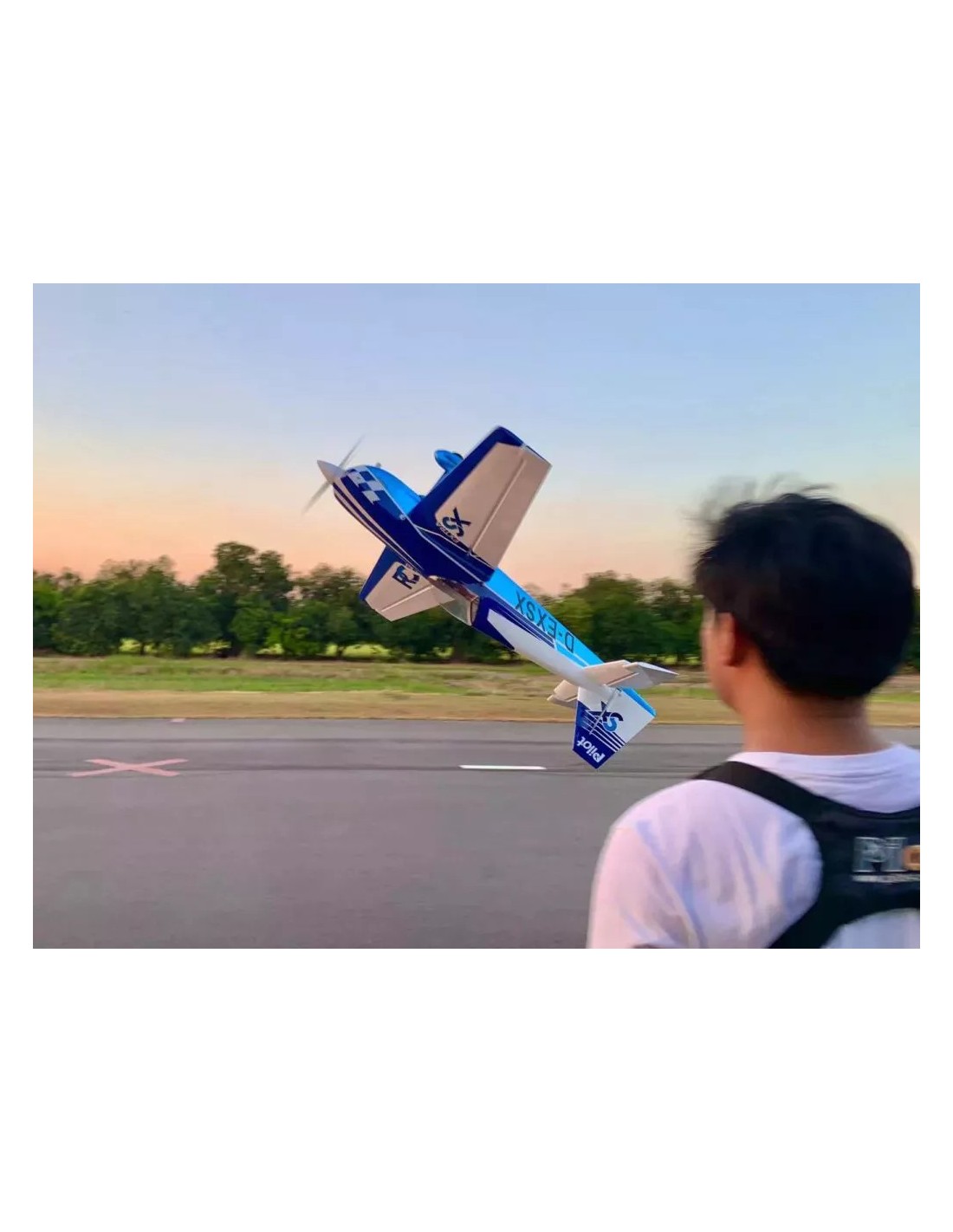

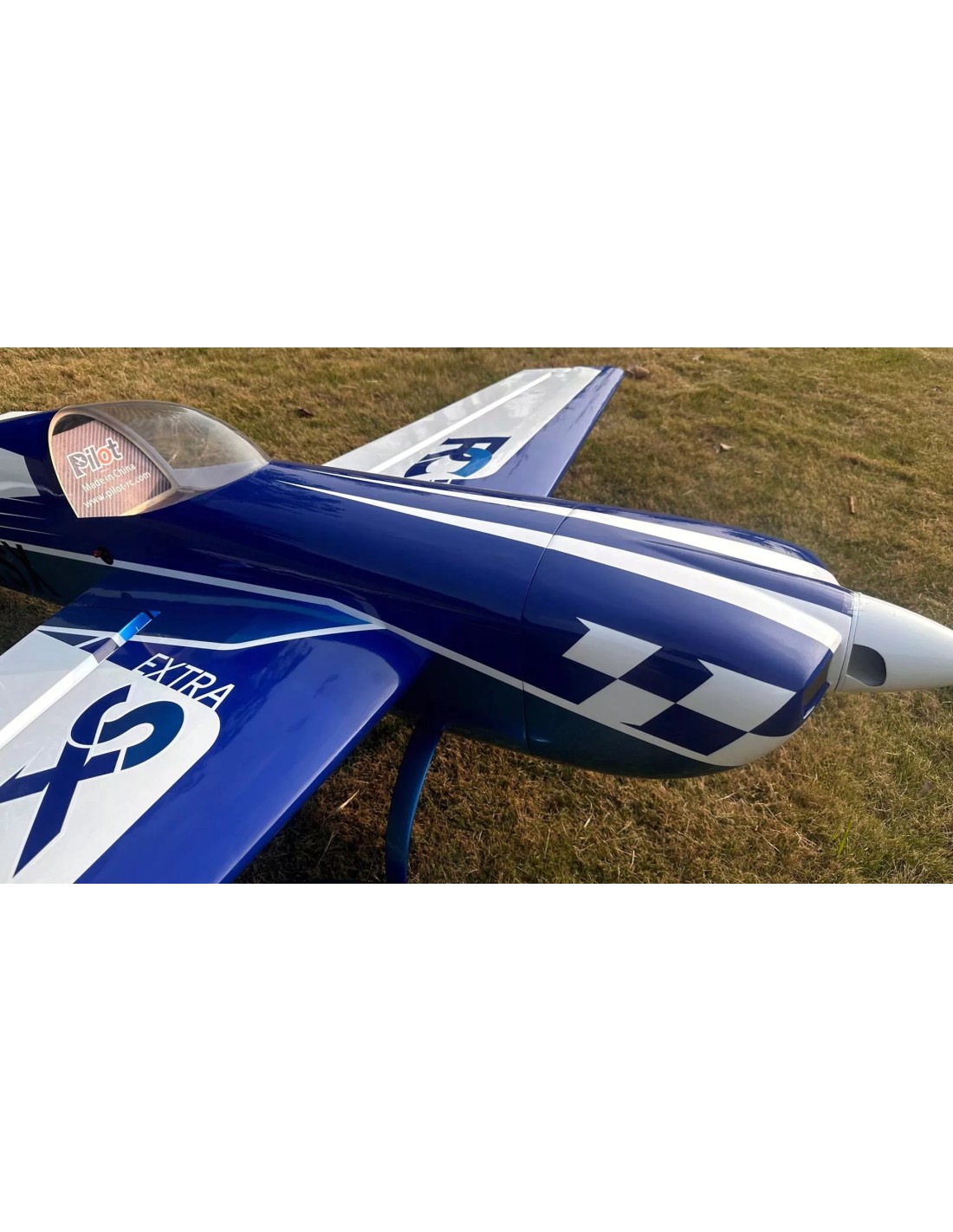

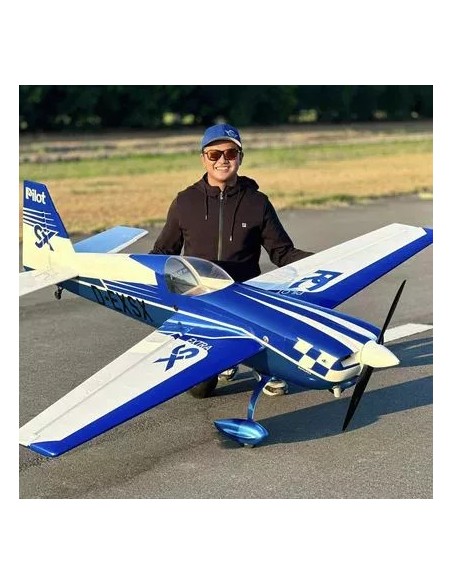

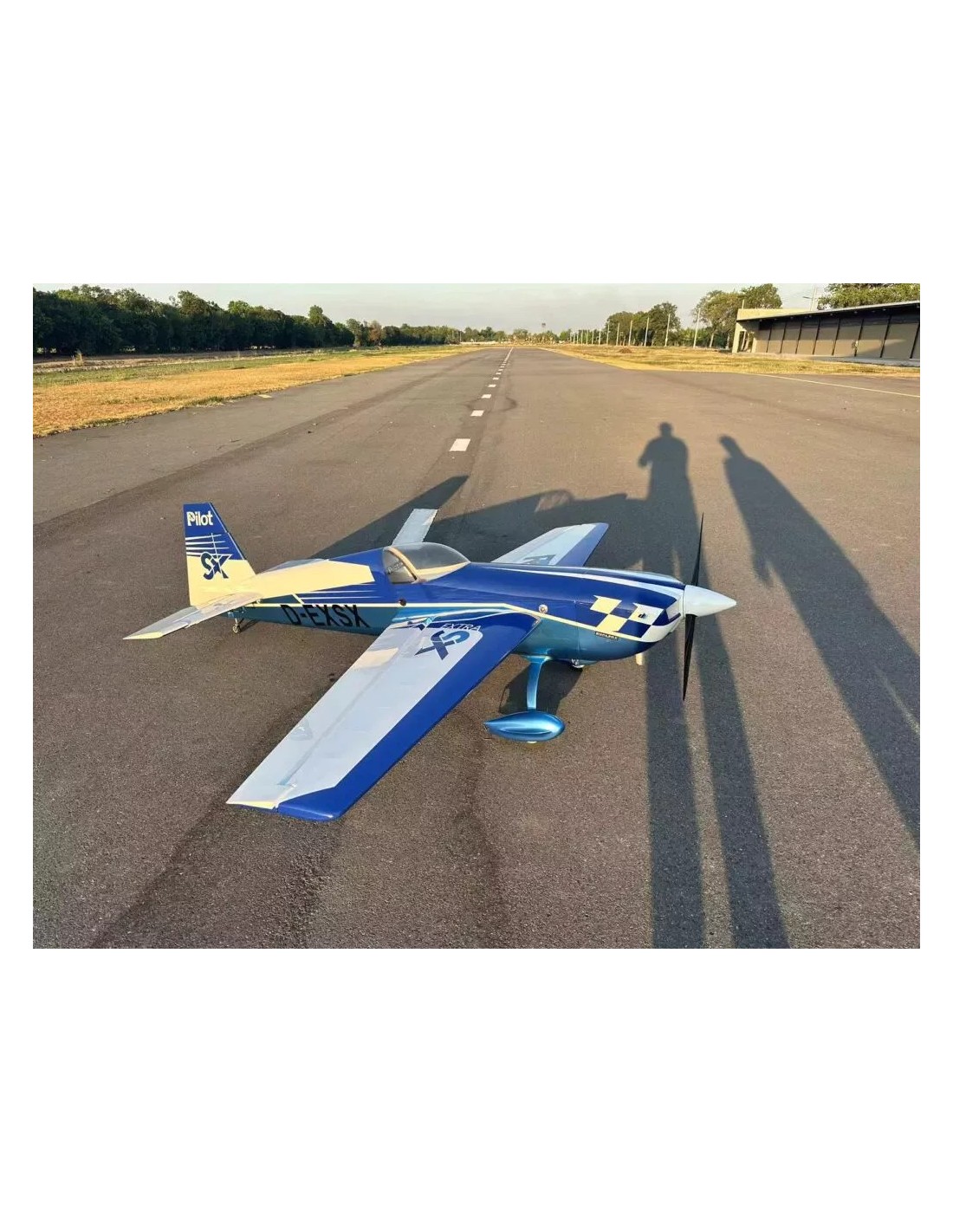

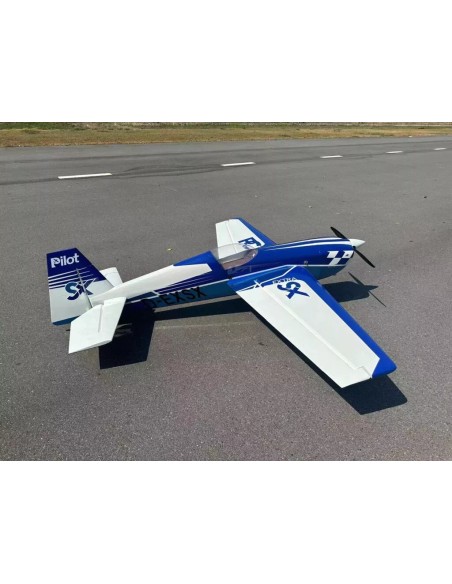

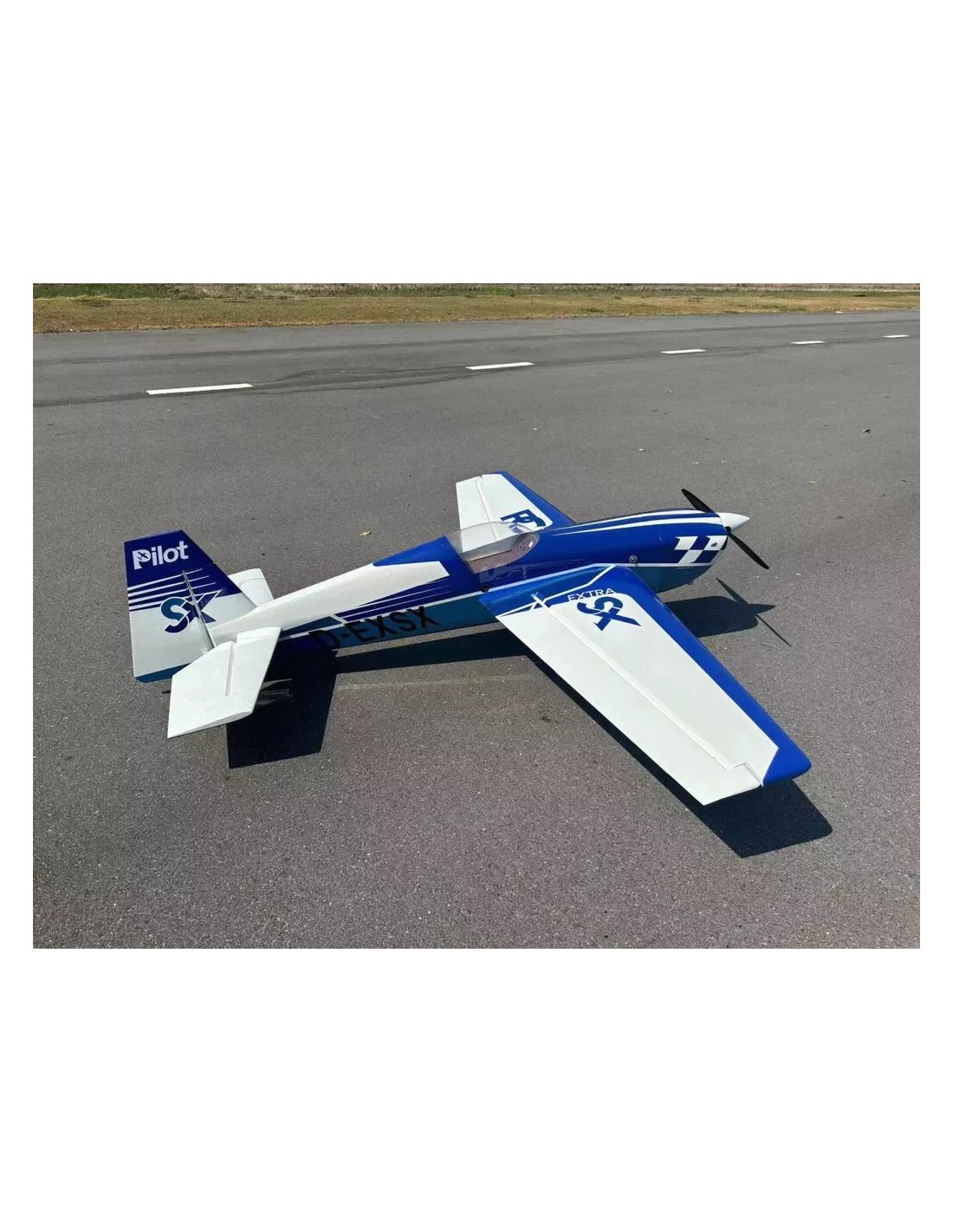

Pilot RC - Extra 330SX 75" (1900 mm), Kit ARF azul/blanco (Esquema 03)

Specifications

• Model: Extra 330SX – 75″
• Wingspan: 75″ (1.90 m)
• Length: 74.6″ (1.89 m) including 3.5″ spinner
• Wing Area: 1,115 in² (7,194 cm²)
• Weight: 12.3 lbs (5.6 kg)

Key Features

• NEW! Hybrid wood/composite construction with reinforced fuselage and wings.
• NEW! Quick-release system for wings, stabilizer, and SFGs – no tools required.
• NEW! Quick-assembly canopy system.
• NEW! Removable stabilizer with advanced QR system.
• Fuel tank positioned at CG (same as 120cc size) to avoid balance changes in flight.
• Film covering applied over genuine German Oracover (Ultracote) base.
• Highly prefabricated – experienced builders can be air-ready in under a day.
• Pre-installed, pinned, and glued hinges.
• Internally mounted cowling – no visible screws (just two easy-access screws underneath).
• Laser-engraved motor mounting positions.
• Open construction for easy canister installation.
• Compatible with popular engines such as DLE35, DA35, GP38.
• Designed for mid-size servos (21kg class) on elevators.
• Pull-pull or push-pull rudder servo options.

Included Hardware

• Complete airframe with carbon-fibre main landing gear, tailwheel assembly, wing tubes, fiberglass control horns, and wheel pants.
• Transparent “spare” lower cowl section to mark and cut perfectly every time.
• Pre-installed hinges and pre-mounted canopy.
• Pre-prepared fuel tank, tubing, fuel dot, and breather valve.
• Wheels, axles, and wheel pants.
• Pre-prepared pushrods with ball links.
• Matching carbon spinner (3.5″).

Required Hardware

• Engine: 30–40cc gas or equivalent electric motor.
• Servos: 5 high-torque servos (minimum 20–21kg), plus throttle. : 1x per aileron : 2x elevator (1 per half) : 1x rudder
• Standard RC gear: transmitter, receiver, propeller, batteries, powerbox, extension leads, and other accessories as required.
