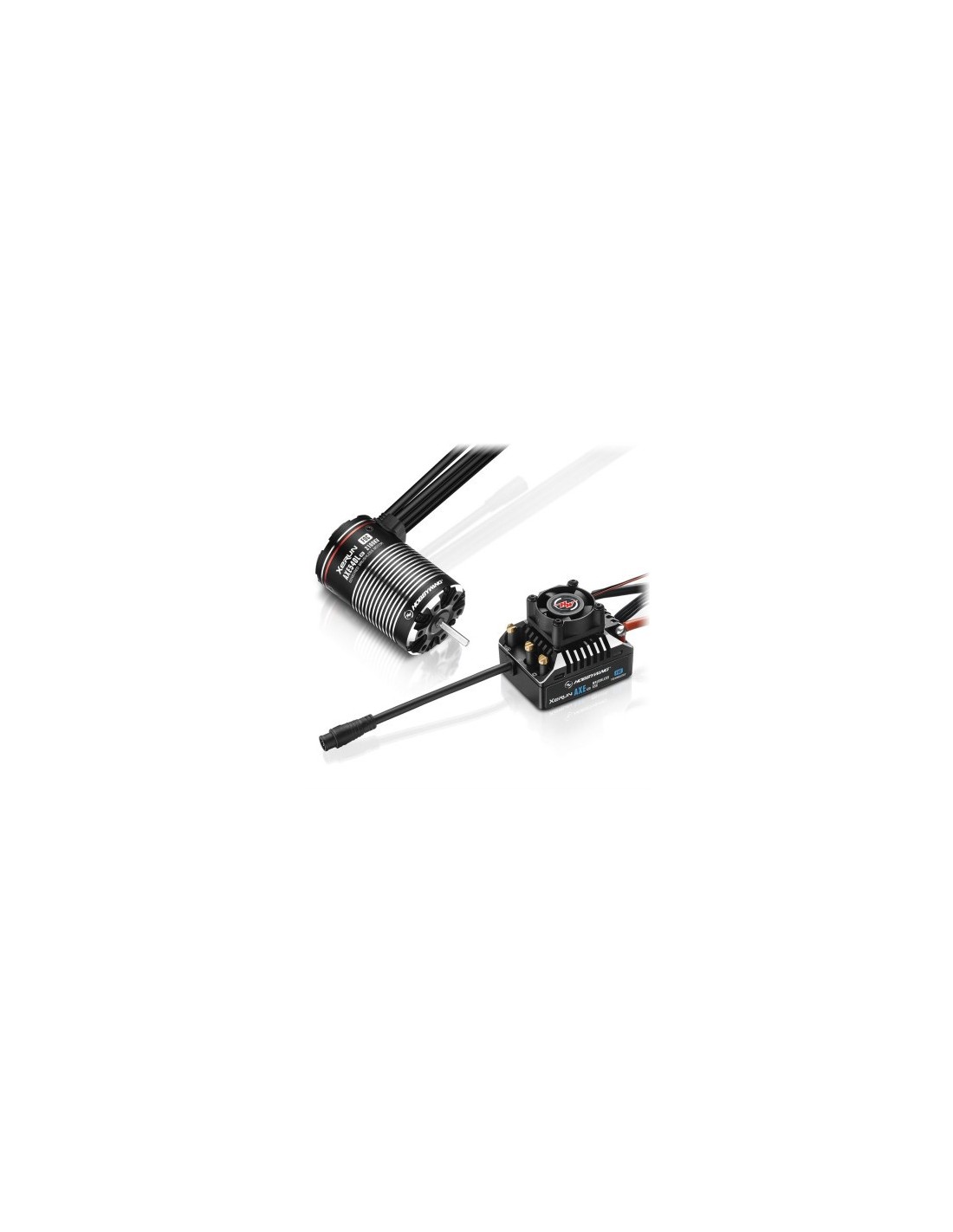

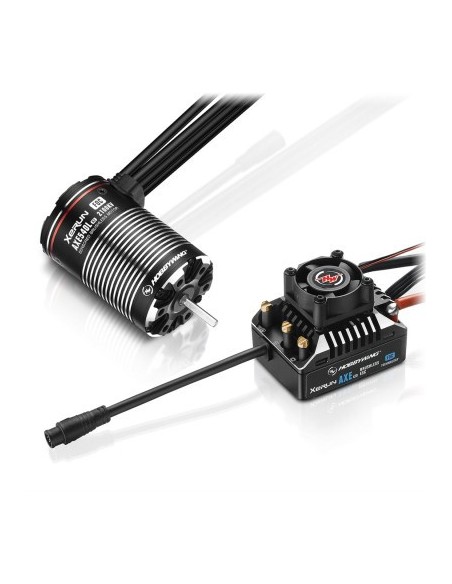

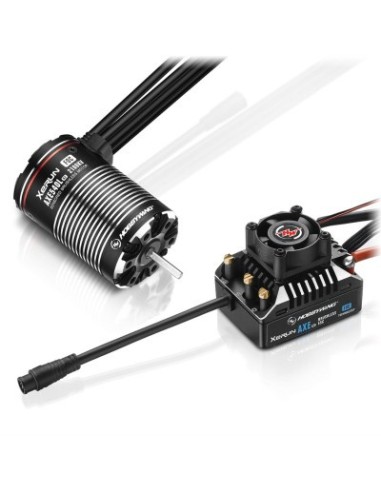

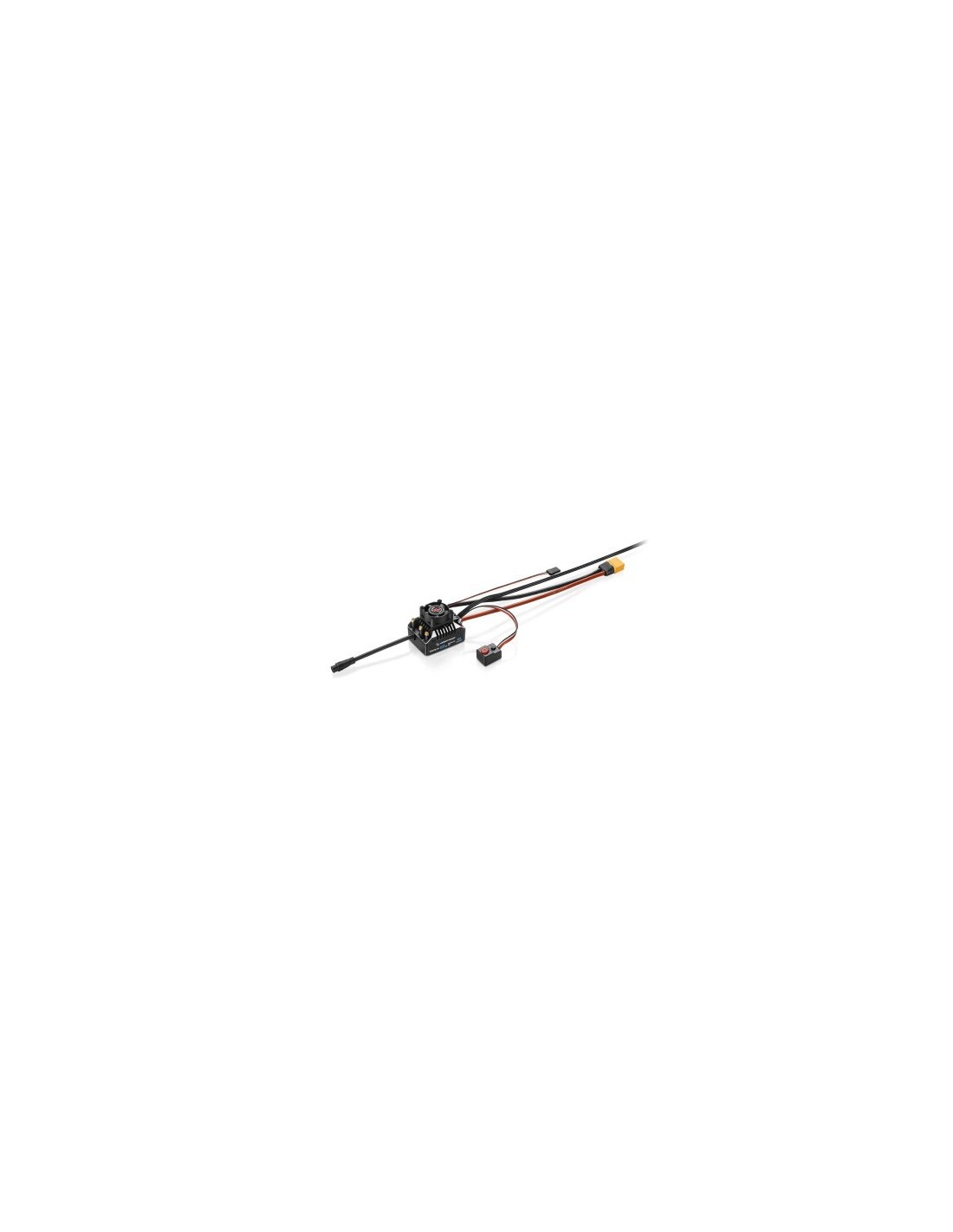

Hobbywing Xerun Axe540L R2-2100kV FOC Combo for Rock Crawler

Specifications

Product Name

XERUN AXE R2 Brushless ESC

Product Number

30112102

Type

Scale

1/10th

Brushed/Brushless

BL

Sensored/Sensorless

SD

Waterproof

YES

Specifications

Cont./Peak Current

80A/480A

Input Voltage

2-3S Lipo/6-9 Cell NiMH

BEC Output

Switch Mode:6V/7.4V@6A

Wires & Connectors

Wires & Connectors

Black-14AWG-200mm*1 Red-14AWG-200mm*1

Output Wires

No

Input Connectors

XT60

Output Connectors

No

ESC Programing via

SET Button on ESC

Not Supported

LED Program Box

Not Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

Programming Port

Built-in bluetooth

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

47.4x36.2x26.5mm

Weight

108g (Including the weight of input line)

Applications

Applications

Only support XERUN AXE R2 motor

Vehicles

1/10thRock Crawler

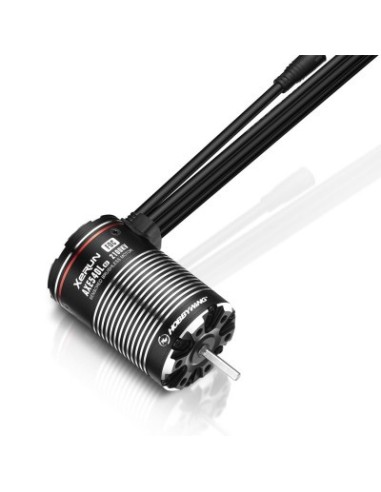

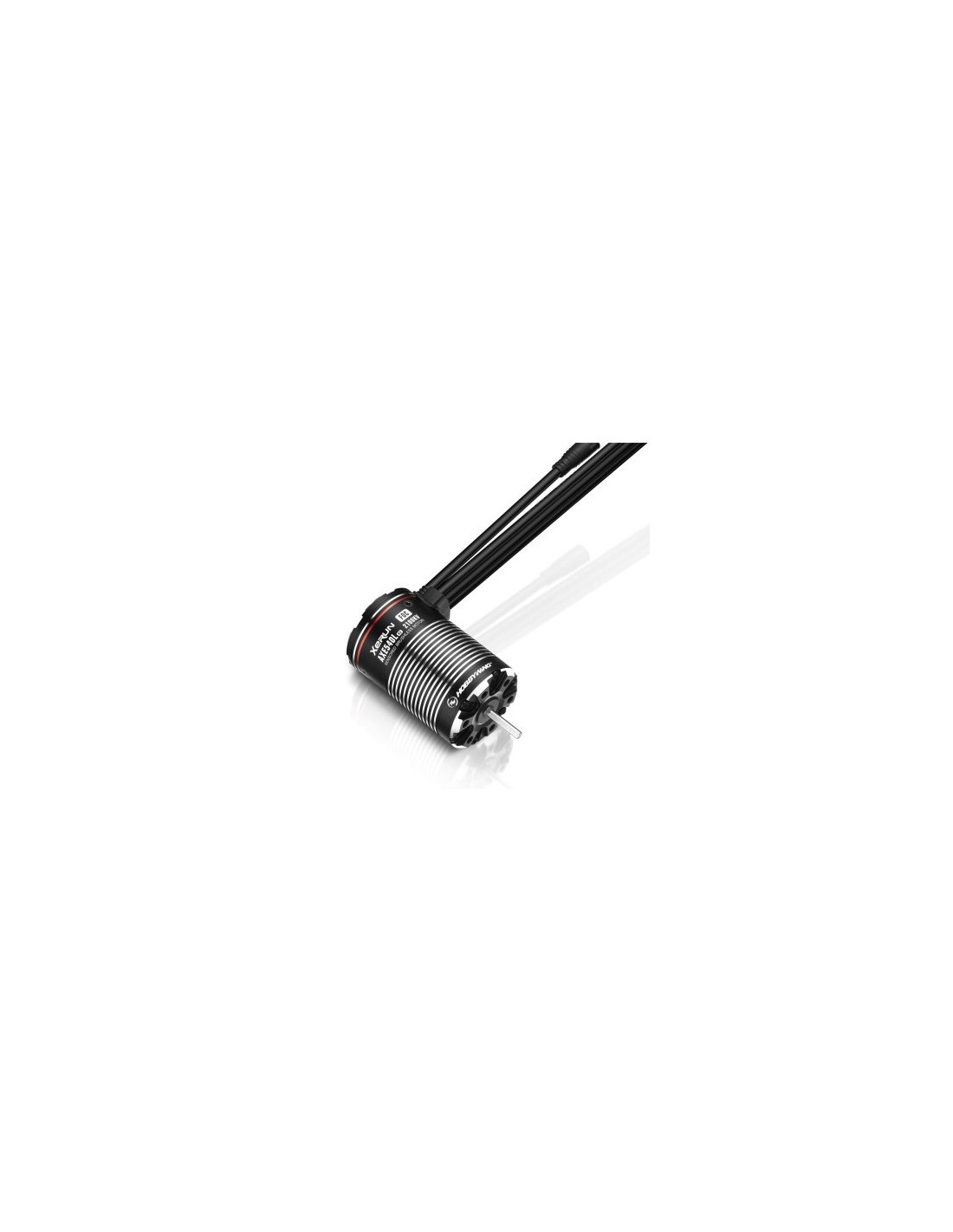

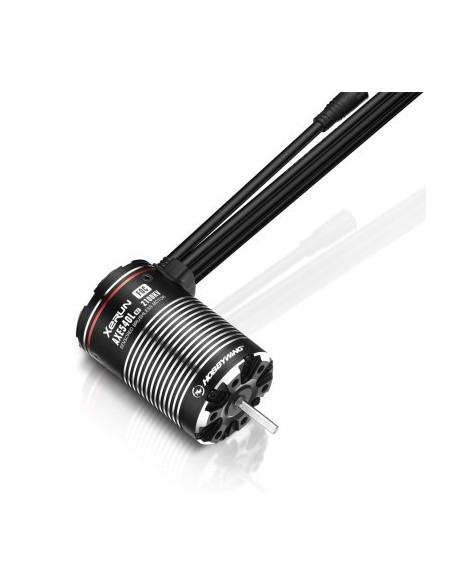

Product Name XERUN AXE540L R2-1400KV XERUN AXE540L R2-2100KV XERUN AXE540L R2-2800KV XERUN AXE550 R2-3300KV

Scale 1/10th 1/10th 1/10th 1/10th

Product Number 30401253 30401254 30401255 30401256

Brushed/Brushless BL BL BL BL

Sensored/Sensorless SD SD SD SD

Poles 4 4 4 4

KV 1400KV 2100KV 2800KV 3300KV

LiPo Cells 2-3S 2-3S 2-3S 2-3S

No-load Current(A) 1.7 2.7 3.6 4.7

Outer diameter (mm) 36.0(1.42in) 36.0(1.42in) 36.0(1.42in) 36.0(1.42in)

Length (mm) 57.8(2.28in) 57.8(2.28in) 57.8(2.28in) 63.8(2.51in)

Shaft diameter (mm) 3.175(0.125in) 3.175(0.125in) 3.175(0.125in) 5(0.197in)

Exposed shaft length (mm) 16.0(0.63in) 16.0(0.63in) 16.0(0.63in) 16.0(0.63in)

Weight(g) 232g 233g 234g 268g
