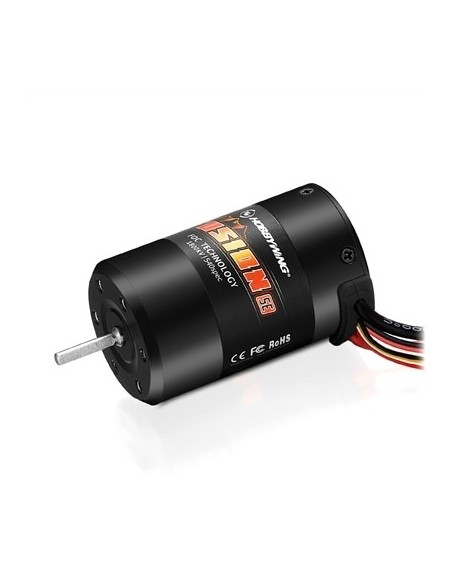

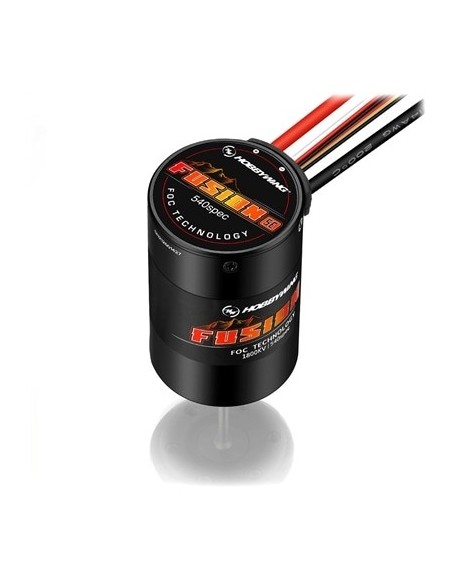

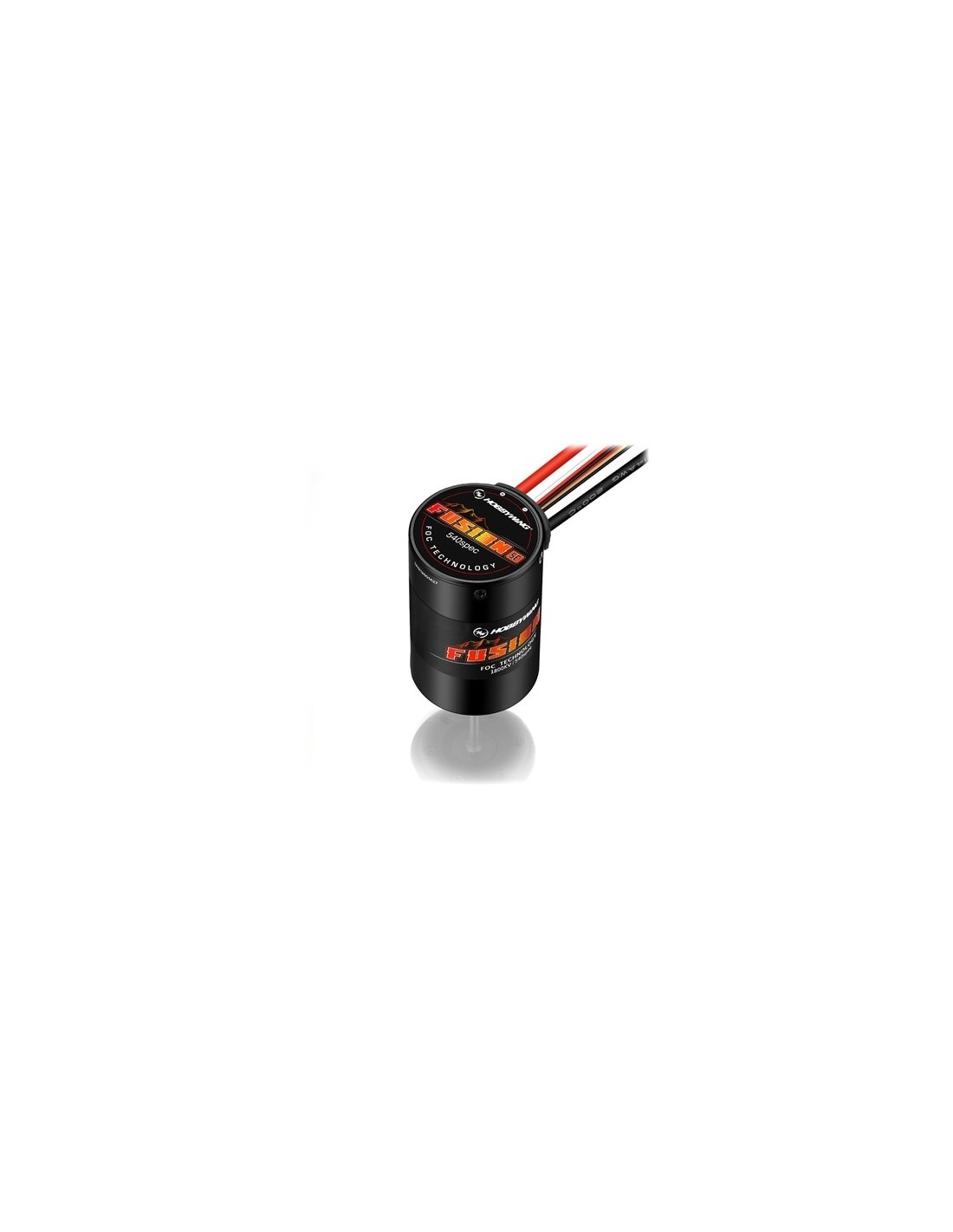

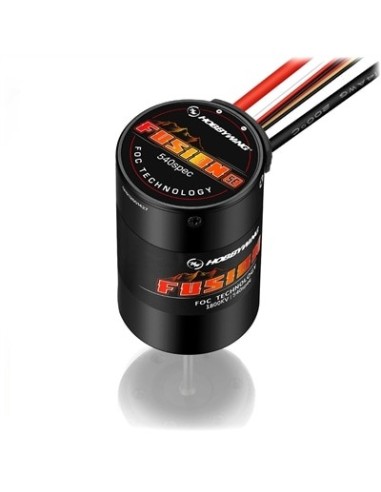

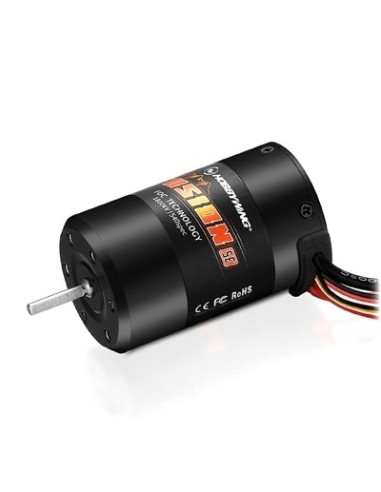

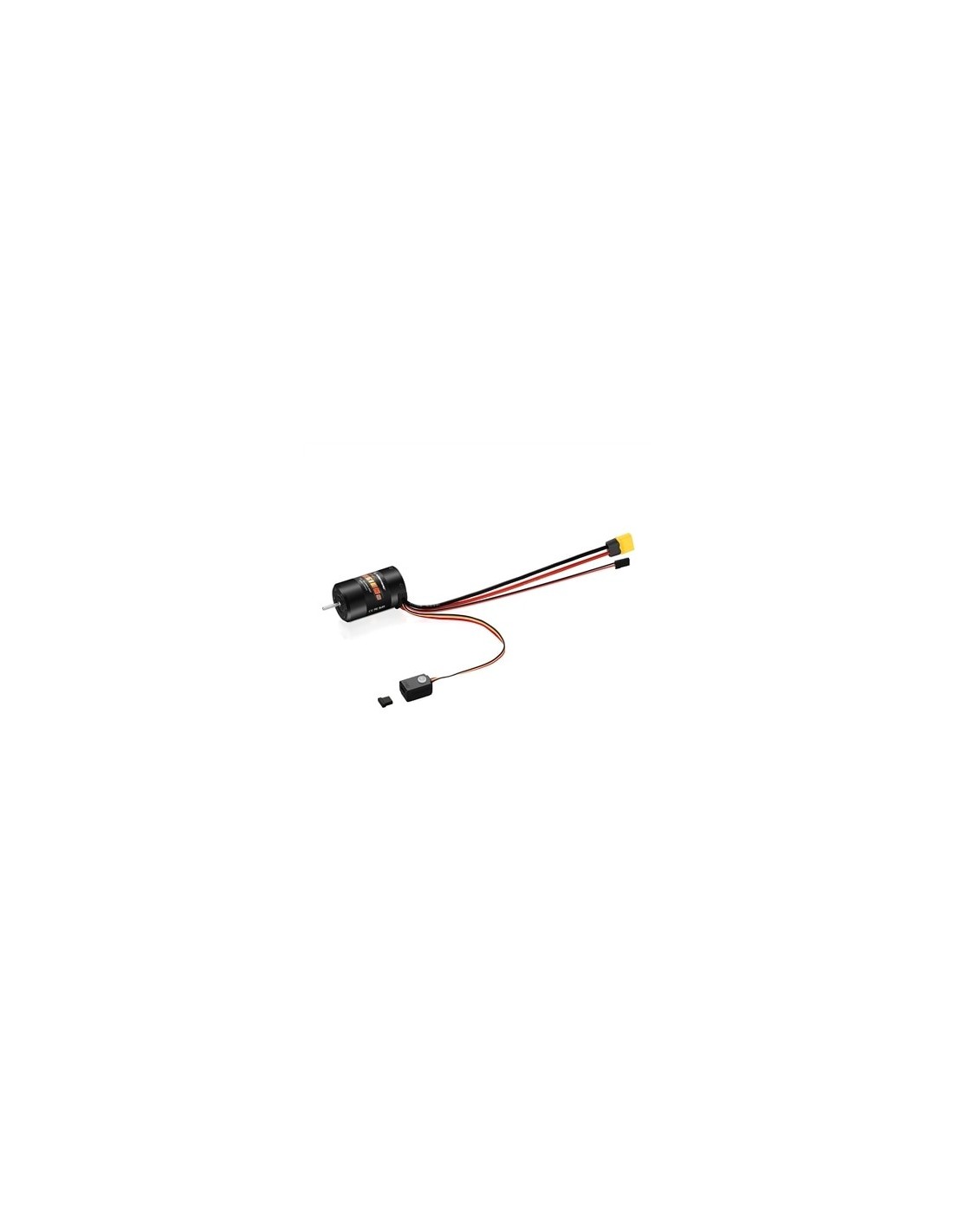

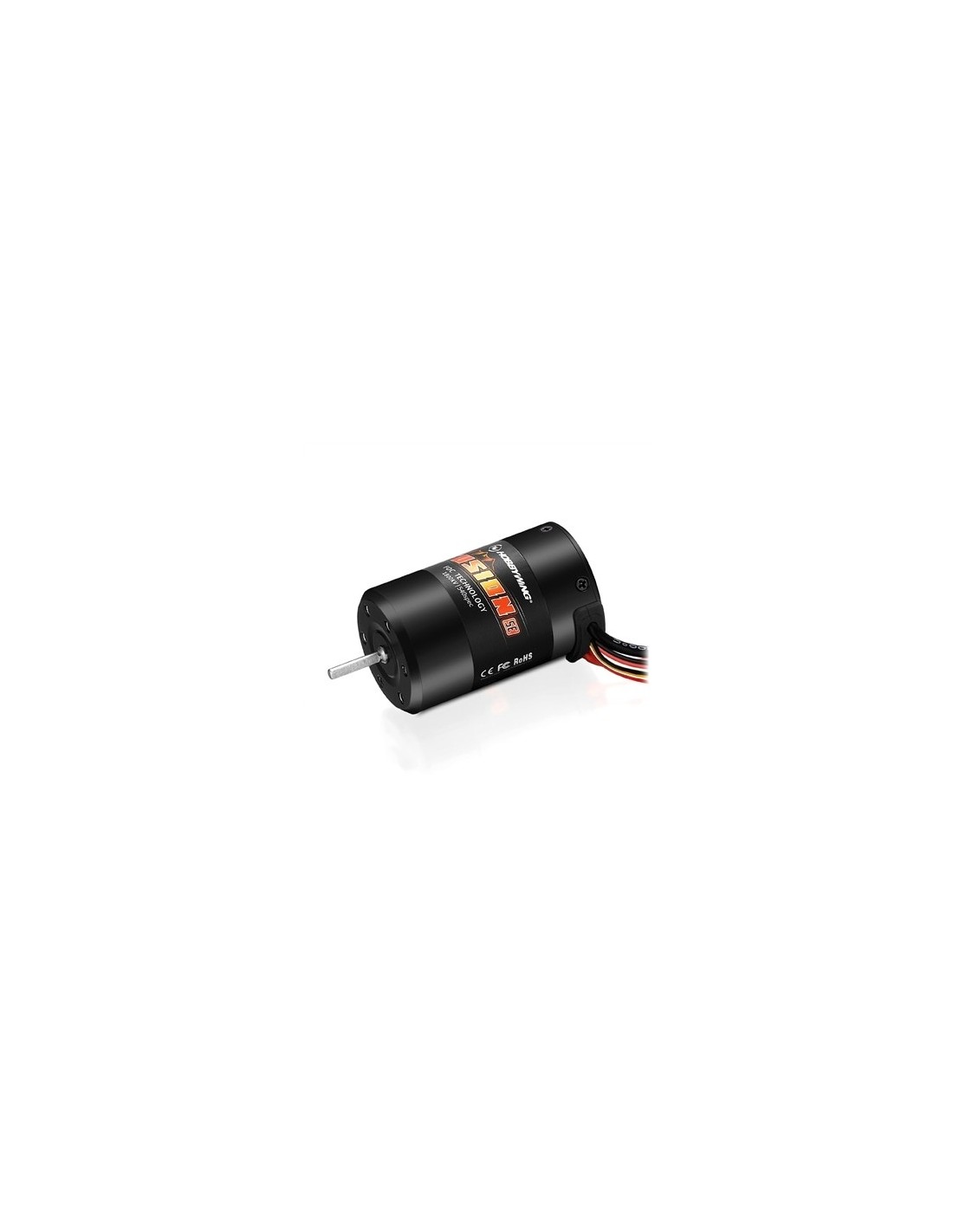

Quicrun Fusion SE for Rock Crawler 1800kV

QuicRun Fusion SE

Product Number: 1200KV-30404318; 1800KV-30404317

Type: Brushless Motor & ESC Combo

Scale: 1/10th

Brushed/Brushless: Brushless

Sensored/Sensorless: Sensorless

Waterproof: Yes

Specifications

Cont./Peak Current: 40A

Input Voltage: 2-3S LiPo / 6-9 Cell NiMH

BEC Output: 6V/7.4V @ 4A, 6A peak (Note: 7.4V output only with 3S LiPo)

Motor KV: 1200KV & 1800KV

Diameter/Length of Motor: 36mm / 58.1mm

Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm

Motor Poles: 4

Wires & Connectors

Input Wires: Red-14AWG-200mm1 / Black-14AWG-200mm1

Input Connectors: XT60

ESC Programming via

Supported: LED Program Box

Not Supported: SET Button on ESC, LCD Program Box, OTA Programmer

Program Port: Independent programming interface (switch position)

Firmware Upgrade: Not Supported

Size & Weight

Size: 36 x 58.1mm

Weight: 201g (including wires & connectors)

Applications/Vehicles: 1/10th Rock Crawler
